CCC SST-F6 SMD3535 IP68 Outdoor SMD LED Display

Shenzhen Shervin Technology Co., Ltd

CCC SST-F6 SMD3535 IP68 Outdoor SMD LED Display

  • 1
  • 2

Brand Name : shervin

Model Number : SST-F6

Certification : CCC.CE.ROHS

Place of Origin : China

MOQ : 1 square meter

Price : 300-800 usd/sets

Payment Terms : L/C, D/A, D/P, Western Union, Western Union

Supply Ability : 5000square meter per month

Delivery Time : within 5days after your payment

Packaging Details : wooden box and Pearl cotton inside

Cabinet size : 640x640mm

Power Supply : Meanwell

Display Function : video

Module size : 320x10mm

Pixel Pitch : 5mm

color : full color

Contact Now

IP68 high brightness and strong cabinets full color customized large outdoor fixed led display 3 years warranty

Outdoor led billboards have the advantages of good stability, low consumption, and wide radiation range. They are the most suitable product for outdoor information dissemination. Basically, the common LED display screens include advertising screens, text screens, graphic screens, etc., which are also the first choice for urban life and brightness.


So what details should be paid attention to when building such high-quality LED advertisements outdoors?

I believe that these are the topics that everyone pays the most attention to, especially for technical construction personnel.

Knowing how to build and maintain outdoor advertising screens will greatly promote Business advertising and information dissemination. Specifically, the outdoor billboard LED electronic display installation has four links: field survey, equipment construction, installation, and debugging.

the detailed specification of outdoor led display as follows

The outdoor full color led display parameter
NO. Item P3.91 P4 P5 P6 P8 P10
1 pixel pitch (Millimeter) 3.91 4 5 6 8 10
2 Led lamp SMD2727 SMD3535 SMD3535 SMD3535 SMD3535 SMD3535
3 Pixel density 65410 62500 40000 27777 15625 10000
4 Module size 250X250 256X128 320X160 192X192 256X128 320X160
5 Module resolution 64X64 64X32 64X32 32X32 32X16 32X16
6 Scan mode 1/8 1/8 1/8 1/8 1/8 1/8
7 Cabinet size 500X1000 768X768 960X960 960X960 1024X1024 960X960
8 Cabinet resolution 128X256 192X192 192X192 160X160 128X128 96X96
9 Brightness 7000cd 7000cd 7000cd 7000cd 7000cd 7000cd

Specification Drive method module size pixel Pixel composition Point density Cabinet size / length and width
P3.91die cast aluminum(SMD) 1/8 scan 250*250mm 64*64 1R1G1B 65410 500*1000MM
P3.91iron cabinet(SMD) 1/8 scan 250*250mm 64*64 1R1G1B 65410 1000*1000MM
P4(SMD)die cast aluminum 1/8 scan 256*128MM 64*32 1R1G1B 62500 512*512MM
P4(SMD) 1/8 scan 256*128MM 64*32 1R1G1B 62500 768*512MM
P4.81die cast aluminum(SMD) 1/13scan 250*250mm 52*52 1R1G1B 43222 500*1000MM
P5(SMD) 1/8 scan 320*160MM 32*32 1R1G1B 40000 960*960MM
P5(SMD)die cast alumiunm 1/8 scan 320*160MM 64*32 1R1G1B 40000 640*640MM
P5.95(SMD) die cast aluminum 1/7 scan 250*250mm 42*42 1R1G1B 28246 500*1000MM
P6(SMD) 1/8 scan 192*192MM 32*32 1R1G1B 27778 960*960MM
P6(SMD)die cast aluminum 1/8 scan 192*192MM 32*32 1R1G1B 27778 576*576MM
P6.67(SMD)die cast alumium 1/8 scan 320*160MM 48*24 1R1G1B 22478 640*640MM
P8(SMD) 1/4 scan 256mm*128mm 32*16 1R1G1B 15625 1024mm*768mm
P8(SMD)die cast aluminum cabinet 1/4 scan 320mm*160mm 40*20 1R1G1B 15625 640mm*640mm
P10(DIP) 1/4 scan 160mm*160mm 16*16 1R1G1B 10000 960mm*960mm
P10(SMD) 1/4 scan 320mm*160mm 32*16 1R1G1B 10000 960mm*960mm
P10(SMD) 1/2 scan 320mm*160mm 32*16 1R1G1B 10000 960mm*960mm
P10(SMD)die cast aluminum 1/4 scan 320mm*160mm 32*16 1R1G1B 10000 640mm*640mm
P16(DIP) Static full color 256mm*256mm 16*16 1R1G1B 3906 1024mm*1024mm
P20(DIP) Static full color 320mm*160mm 16*8 1R1G1B 2500 1280mm*960mm

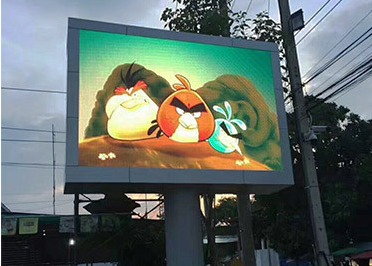

CCC SST-F6 SMD3535 IP68 Outdoor SMD LED Display

CCC SST-F6 SMD3535 IP68 Outdoor SMD LED Display

1. Long service life: The service life of light-emitting diodes is more than 100,000 hours
2. Fast response speed: This is a common feature of semiconductor devices
3. Long visual distance: the single point diameter of led can reach 52mm, and the visual distance is more than 500 meters. 4. There are many kinds of specifications: led display screens are indoor, outdoor, monochrome, two-color and full-color. 5 , High degree of digitization: fully digitized, high-resolution graphics can be realized
6. High brightness: can be used outdoors, such as traffic lights, anti-fog lights, etc. And the brightness can be automatically and flexibly adjusted according to different brightness needs in sunny and cloudy days or in the morning and afternoon
7. Large viewing angle: indoor display screen can reach 160 degrees, outdoor display can reach 120 degrees
